WatchGuard Radar

Multi-Mode Ground Surveillance Radar

Category:

Defence

Domains:

Land

Highlights

Simultaneous multi-mode operation combining staring and scanning programmable search regime
Single Module Pulse Doppler Radar (SMPDR)
Digital Beam Forming (DBF)
Internal calibration with extensive BIT capabilities
Flexible modular design to support different range and sector coverage
Track-while-scan supporting up to 300 targets
Very quick and easy deployment

Get Brochure

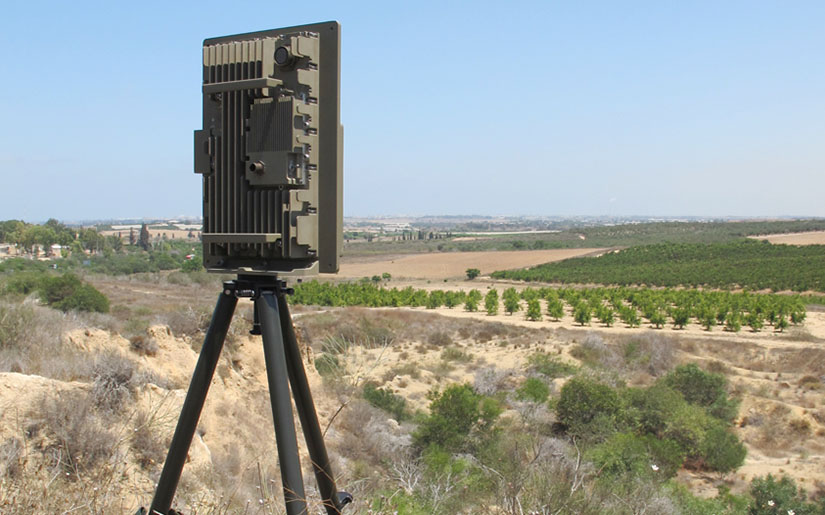

FTS's WatchGuard (ELM-2180) is a fifth generation of movement detection tactical Ground Surveillance Radars (GSR), providing both staring and electronic steering search techniques. Featuring a high update rate, the radar enables very high probability of target detection and tracking to support complex missions. Combination of staring and scanning allows to adapt and optimize the radar operation for any scenario.

The WatchGuard is a solid-state, small size and low weight Active Electronically Scanning Phased-array (AESA), multi-beam all weather radar providing high accuracy detection data, either locally or to remote Command and Control (C&C) systems. The radar covers 90° to 360° by employing 1 to 4 stationary (non-rotating) phased array antennas, each covering a sector of 90°.

‍
